Code: 24082636

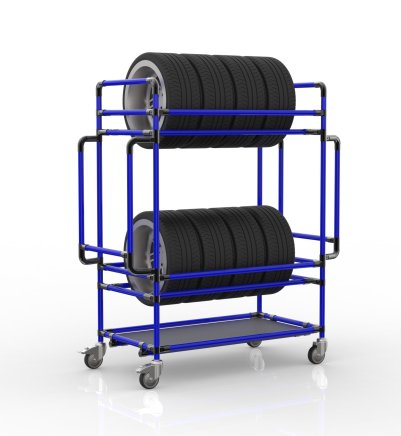

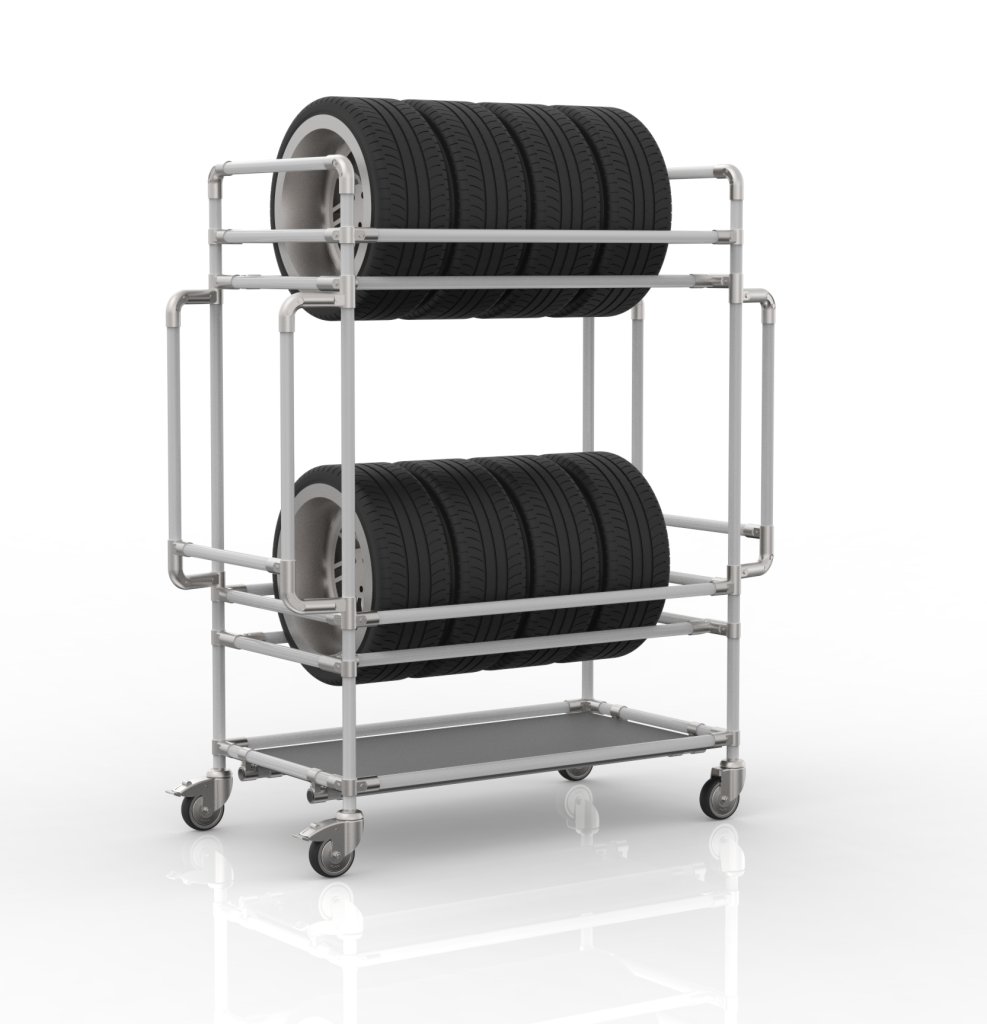

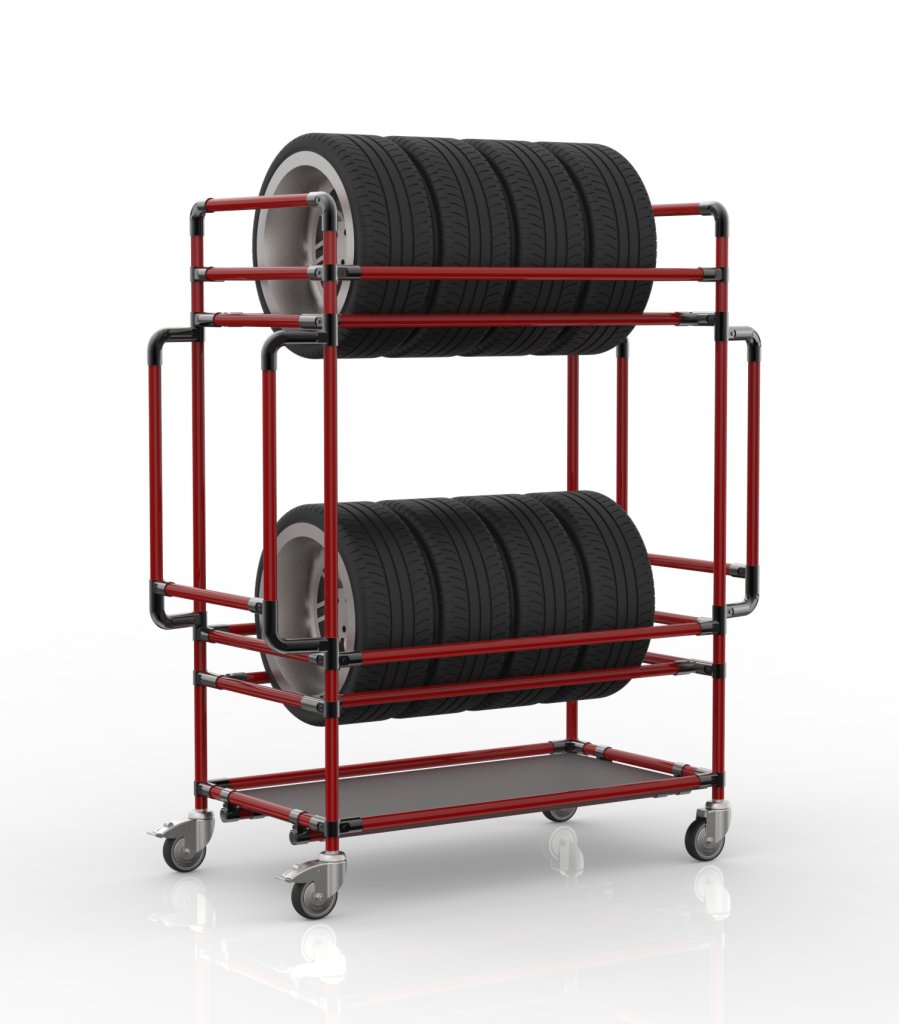

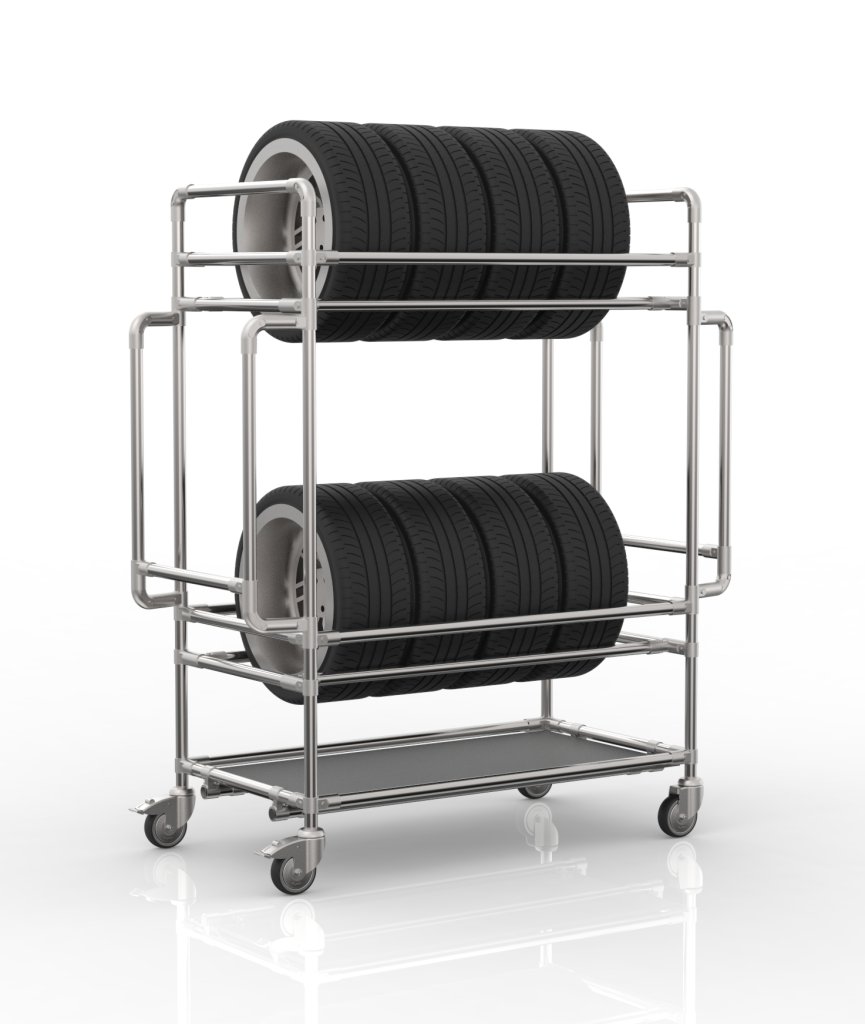

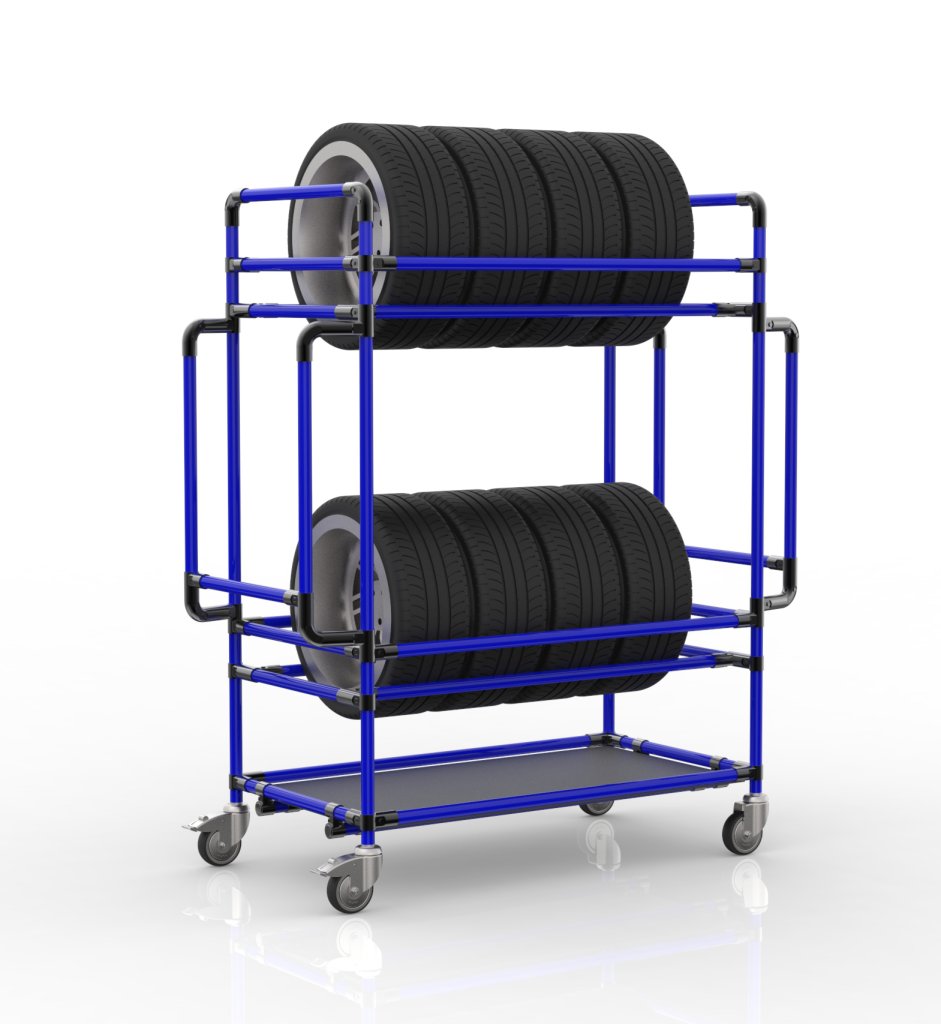

Mobile tire rack made from a tubular modular system with one shelf and two tiers. Ideal for tires measuring 16" to 20". The rack full description and parameters
Mobile tire rack made from a tubular modular system with one shelf and two tiers. Ideal for tires measuring 16" to 20". The rack includes two tiers for tire storage, one shelf with a 10 mm thick Akyboard, a handle on each side for easier handling, two wheels with brakes, and two wheels without brakes, each with a diameter of 100 mm. Tires are not included. Load capacity of the shelf is 100 kg, total load capacity is 200 kg. Dimensions: 1500 x 1068 x 600 mm.
Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
| Height: | 1500 mm |
|---|---|
| Width: | 1068 mm |
| Depth: | 600 mm |
| Carrying capacity: | 200 kg |
| Shelf capacity: | 100 kg |
| Number of shelves: | 3 |
| Wheel diameter: | 100 mm |
| Warranty (years): | 2 |
Code: 24082633
Tire stand 24082633148.94 Eur without VAT
(180.22 Eur with VAT)
Tire stand made from a tubular modular system with three shelves. Practical storage for up to 12 tires on three levels. Ideal for tires measuring 16" to 20", the stand includes four anchoring feet. Tires are not included. Load capacity per shelf is 100 kg, total load capacity is 300 kg. Dimensions: 2000 x 1127 x 465 mm.
Code: 24082634
Tire cart 24082634158.04 Eur without VAT
(191.23 Eur with VAT)
Tire cart made from a tubular modular system with a practical handle. Ideal for tires measuring 16" to 20". The cart includes two swivel wheels and two swivel wheels with brakes, each with a diameter of 100 mm, allowing for easy handling. Tires are not included. Load capacity of the cart is 100 kg. Dimensions: 700 x 1066 x 596 mm.
Code: 24082635
Tire cart with shelf 24082635197.06 Eur without VAT
(238.44 Eur with VAT)
Tire cart with a shelf made from a tubular modular system. Ideal for tires measuring 16" to 20". The cart includes a shelf with a 10 mm thick Akyboard, two practical handles, two swivel wheels with brakes, and two swivel wheels without brakes, each with a diameter of 100 mm, allowing for easy handling. Tires are not included. Shelf load capacity is 75 kg, total cart load capacity is 175 kg. Dimensions: 850 x 1200 x 433 mm.
Code: 24022601
Handling chassis small 24022601396.00 Eur without VAT
(479.16 Eur with VAT)
Manipulation chassis made of pre-assembled steels with a size of 40x40 mm suitable for various handling purposes in warehouses and workshops. Thanks to its high load capacity of 750 kg, it is ideal for transporting heavier objects. The chassis includes 2 swivel wheels with a brake and 2 swivel wheels without a brake with a diameter of 125 mm, which allow easy handling of objects. The chassis is available in several variants - galvanized surface or colored lacquer. Dimensions 350 x 840 x 1350 mm.
Code: 24041933
Handling chassis with plate 24041933 (2 models)Price on request
A handling trolley made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes a laminated board, 2x swivel casters with brakes, and 2x swivel casters without brakes, with a diameter of 75 mm, which allow for easy handling of objects. The internal dimension is designed for a crate measuring 600 x 400 mm. Dimensions are 678 x 478 x 138 mm.
Code: 24041940
Handling chassis with handle 24041940Price on request
A handling chassis with a handle made from a tubular system is suitable for various handling purposes in warehouses and workshops. Part of the chassis is a laminated board, 2 swivel casters with brakes, and 2 swivel casters without brakes, with a diameter of 75 mm, allowing easy handling of items. The internal dimension is designed for 2 boxes measuring 600 x 400 mm. Dimensions are 878 x 678 x 900 mm.
Code: 24041936
Handling chassis with handle 24041936Price on request
A handling chassis with a handle made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes 2 swivel casters with brakes and 2 swivel casters without brakes, with a diameter of 75 mm, allowing easy handling of items. The internal dimension is designed for a crate measuring 600 x 400 mm. Dimensions are 678 x 478 x 900 mm.
