Code: 24041932

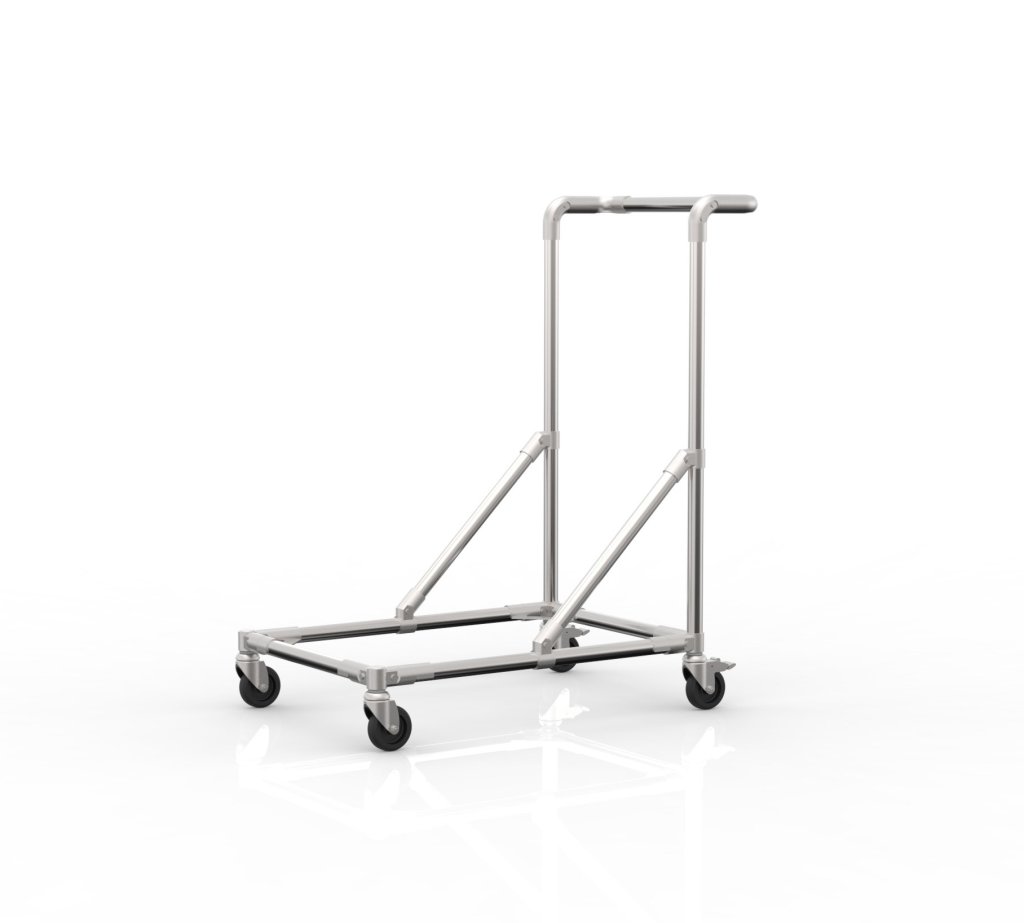

A handling trolley with a handle made from a tubular system is suitable for various handling purposes in warehouses and workshops. full description and parameters
A handling trolley with a handle made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes 2 swivel casters with brakes and 2 swivel casters without brakes, with a diameter of 75 mm, allowing easy handling of items. The internal dimension is designed for a crate measuring 600 x 400 mm. Dimensions are 678 x 478 x 900 mm.
.
Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in an ESD or stainless steel variant (suitable for gastronomy).
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
| Height: | 900 mm |
|---|---|
| Width: | 678 mm |
| Depth: | 478 mm |
| Carrying capacity: | 100 kg |
| Wheel diameter: | 75 mm |
| Warranty (years): | 2 |
| Manufacturer: |
|
Code: R-KLT 6429
R-KLT crate with full bottom 600 x 400 x 280 mm24.45 Eur without VAT
(29.58 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 280 x w. 400 x d. 600 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: RL-KLT 6147
RL-KLT crate with drain holes 600 x 400 x 147 mm14.31 Eur without VAT
(17.32 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 147 x w. 400 x d. 600 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
TOP
Code: RL-KLT 6280
RL-KLT crate with drain holes 600 x 400 x 280 mm22.31 Eur without VAT
(27.00 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 280 x w. 400 x d. 600 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: ESD_RL-KLT 6280
ESD RL-KLT crate with drain holes 600 x 400 x 280 mm22.31 Eur without VAT
(27.00 Eur with VAT)
ESD RL-KLT crate made of high-quality electrically conductive material that protects sensitive electronic components from electrostatic charge. spec. internal resistance* 10³ < 10¹⁰ Ohm/cm. Color black RAL 9017. Dimensions h. 280 x w. 400 x d. 600 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg. Please note that due to the flow orientation, which depends on the processing method, the finished parts may have different electrical properties. Resale of stock.
Code: R-KLT-D 65
Lid for R-KLT transporter 600 x 400 mm - R-KLT-D 656.88 Eur without VAT
(8.32 Eur with VAT)
Lid made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Suitable for R-KLT crates 600 x 400 mm.
Code: RL-KLT-D 65
Lid for RL-KLT transporter 600 x 400 mm - RL-KLT-D 656.84 Eur without VAT
(8.28 Eur with VAT)
Lid made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Suitable for RL-KLT crates 600 x 400 mm.
TOP
Code: R-KLT 6415
R-KLT crate with full bottom 600 x 400 x 147 mm16.32 Eur without VAT
(19.75 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 147 x w. 400 x d. 600 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: 24041933
Handling chassis with plate 24041933 (2 models)Price on request
A handling trolley made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes a laminated board, 2x swivel casters with brakes, and 2x swivel casters without brakes, with a diameter of 75 mm, which allow for easy handling of objects. The internal dimension is designed for a crate measuring 600 x 400 mm. Dimensions are 678 x 478 x 138 mm.
Code: 24041935
Handling chassis 24041935Price on request
A handling trolley made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes 2 swivel casters with brakes and 2 swivel casters without brakes, with a diameter of 75 mm, allowing easy handling of items. The internal dimension is designed for a crate measuring 600 x 400 mm. Dimensions are 678 x 478 x 138 mm.
Code: 24041936
Handling chassis with handle 24041936Price on request
A handling chassis with a handle made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes 2 swivel casters with brakes and 2 swivel casters without brakes, with a diameter of 75 mm, allowing easy handling of items. The internal dimension is designed for a crate measuring 600 x 400 mm. Dimensions are 678 x 478 x 900 mm.
Code: 24041937
Handling chassis 24041937Price on request
A handling trolley made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes 2 swivel casters with brakes and 2 swivel casters without brakes, with a diameter of 75 mm, allowing easy handling of items. The internal dimension is designed for 2 boxes measuring 600 x 400 mm. Dimensions are 878 x 678 x 138 mm.
Code: 24041939
Handling chassis 24041939Price on request
A handling trolley made from a tubular system is suitable for various handling purposes in warehouses and workshops. Part of the chassis is a laminated board, 2 swivel casters with brakes, and 2 swivel casters without brakes, with a diameter of 75 mm, allowing easy handling of items. The internal dimension is designed for 2 boxes measuring 600 x 400 mm. Dimensions are 878 x 678 x 138 mm.
Code: 24041940
Handling chassis with handle 24041940Price on request
A handling chassis with a handle made from a tubular system is suitable for various handling purposes in warehouses and workshops. Part of the chassis is a laminated board, 2 swivel casters with brakes, and 2 swivel casters without brakes, with a diameter of 75 mm, allowing easy handling of items. The internal dimension is designed for 2 boxes measuring 600 x 400 mm. Dimensions are 878 x 678 x 900 mm.
Code: 24022601
Handling chassis small 24022601396.00 Eur without VAT
(479.16 Eur with VAT)
Manipulation chassis made of pre-assembled steels with a size of 40x40 mm suitable for various handling purposes in warehouses and workshops. Thanks to its high load capacity of 750 kg, it is ideal for transporting heavier objects. The chassis includes 2 swivel wheels with a brake and 2 swivel wheels without a brake with a diameter of 125 mm, which allow easy handling of objects. The chassis is available in several variants - galvanized surface or colored lacquer. Dimensions 350 x 840 x 1350 mm.
