Trolley with electric lift 23081603
Code: 23081603
The handling cart with electric lifting system and battery is a suitable addition to all industrial and storage areas. The robust full description and parameters
Description and technical parameters

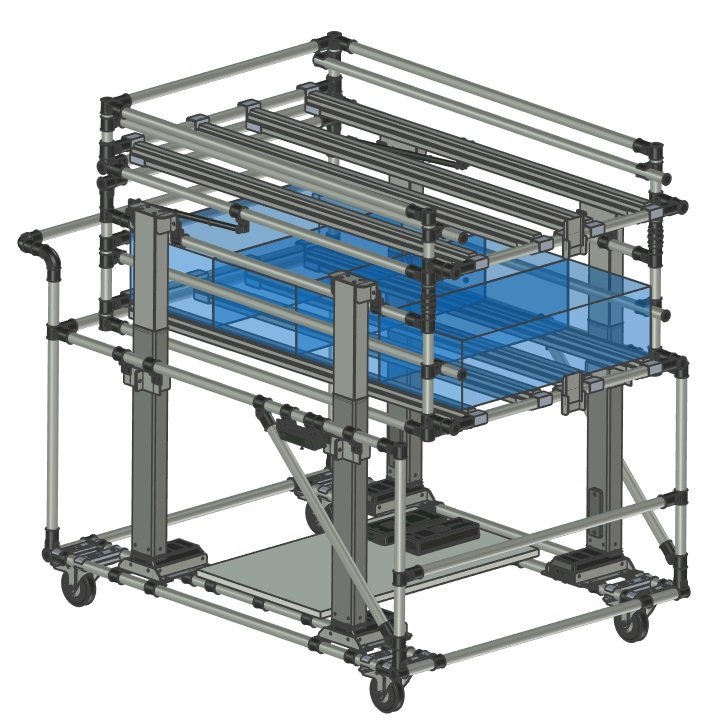

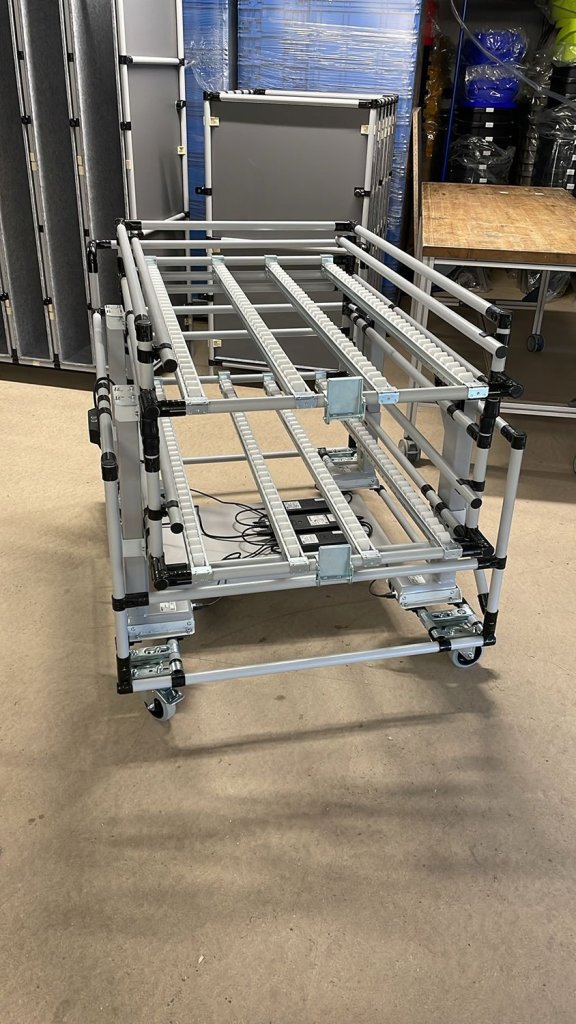

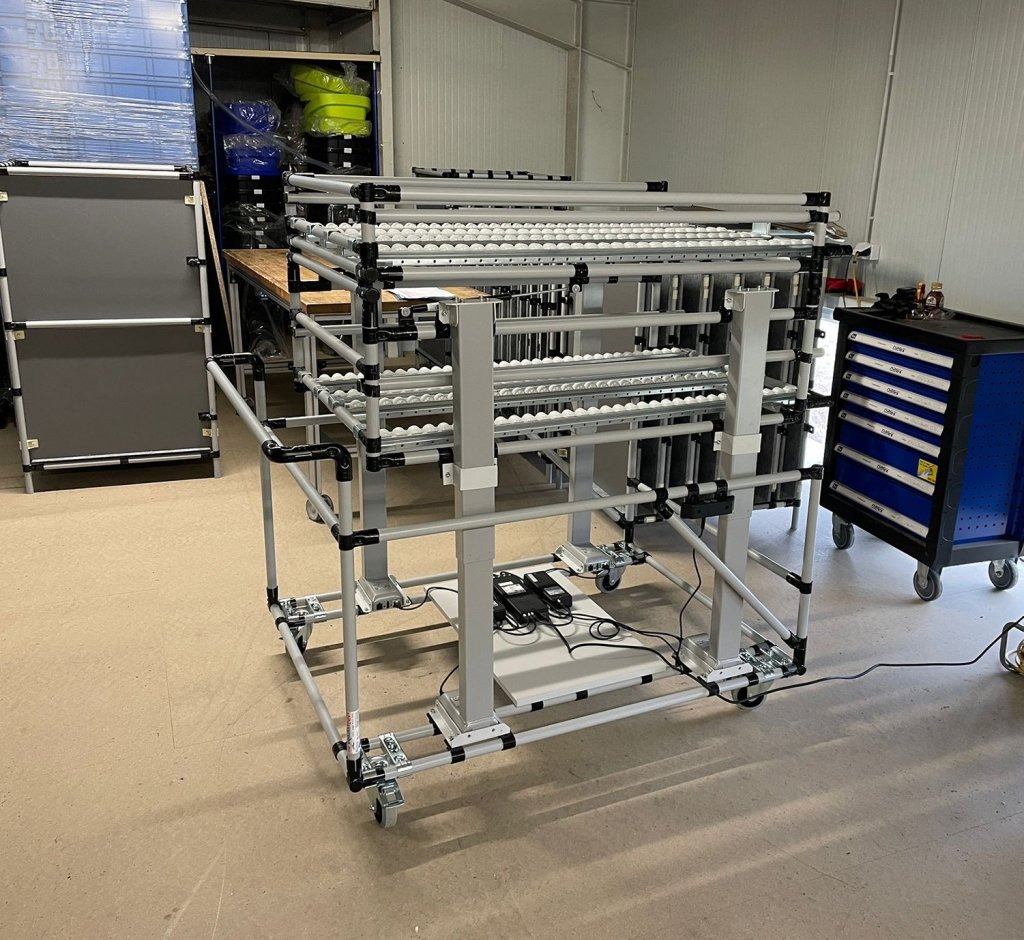

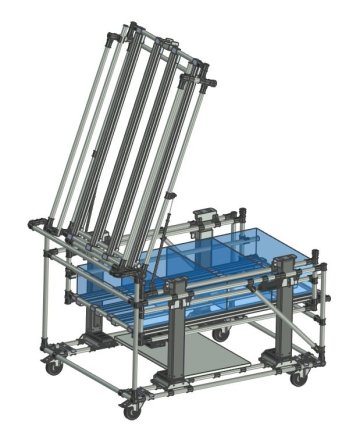

Trolley with electric lift 23081603

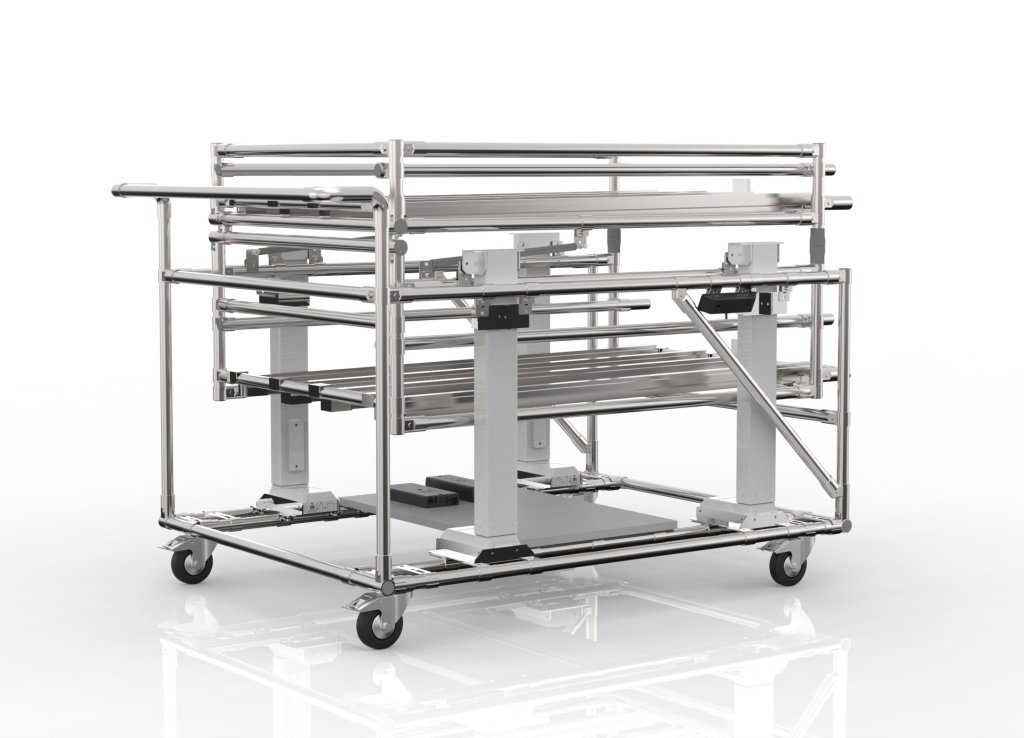

The handling cart with electric lifting system and battery is a suitable addition to all industrial and storage areas. The robust construction and reliable lifting system enable easy and safe transport of loads weighing up to 100 kg and with the possibility of lifting up to 400 mm. With a battery life of up to 3 hours, the handling cart is a reliable helper during the entire work shift. Dimensions 1028 x 1381 x 987 mm.
- electric lifting system
- battery life of up to 3 hours of functional clean time
- stroke 400 mm
- 4x swivel wheel with brake
- wheel diameter 100 mm

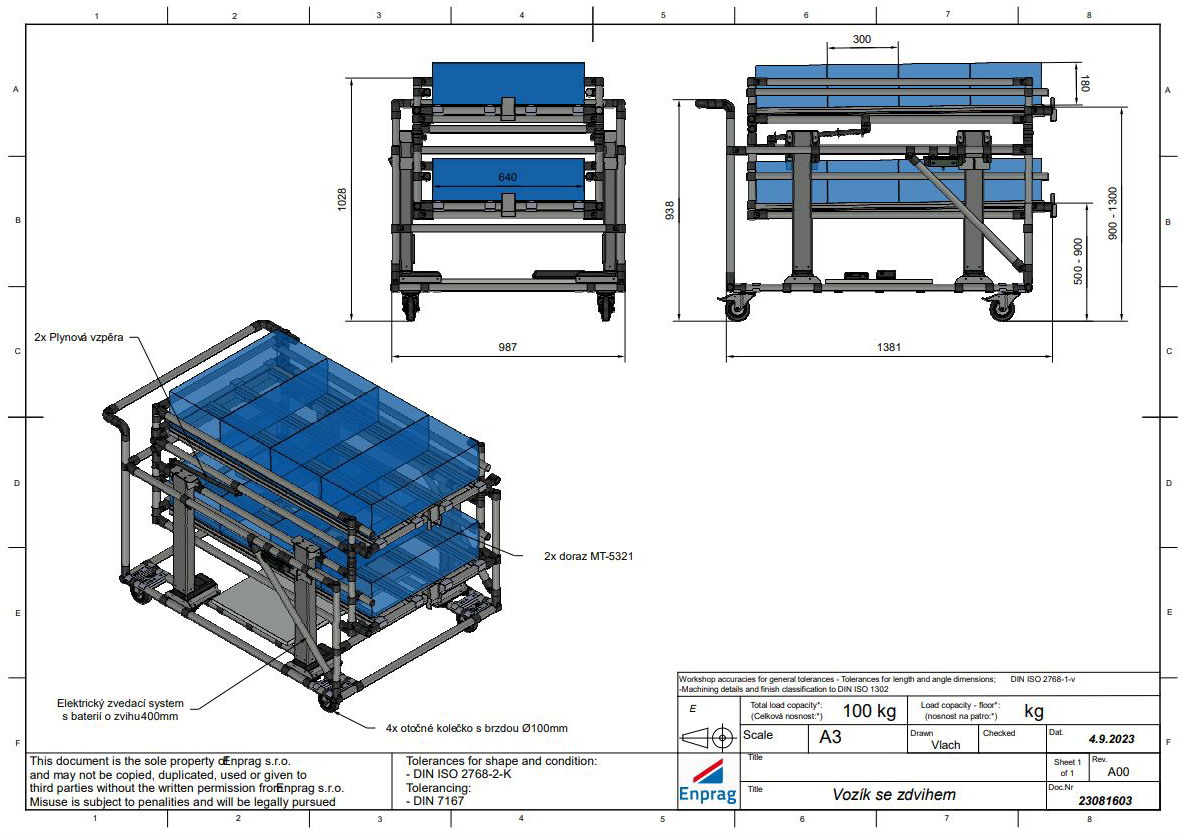

- dimensions 1028 x 1381 x 987 mm
- total load capacity 100 kg

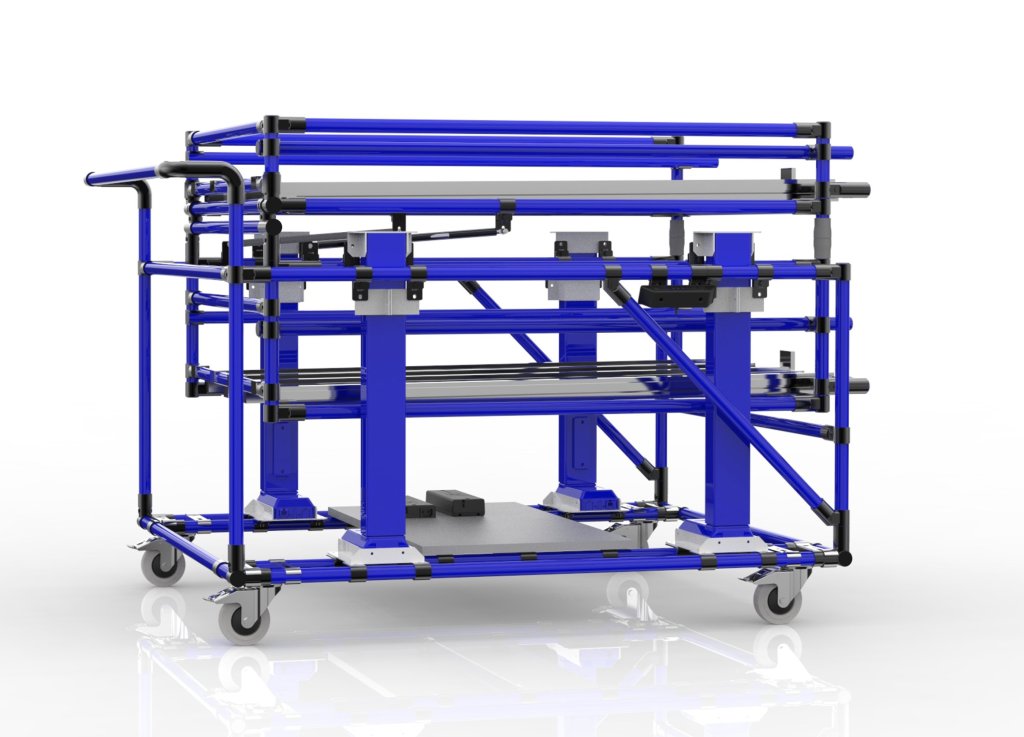

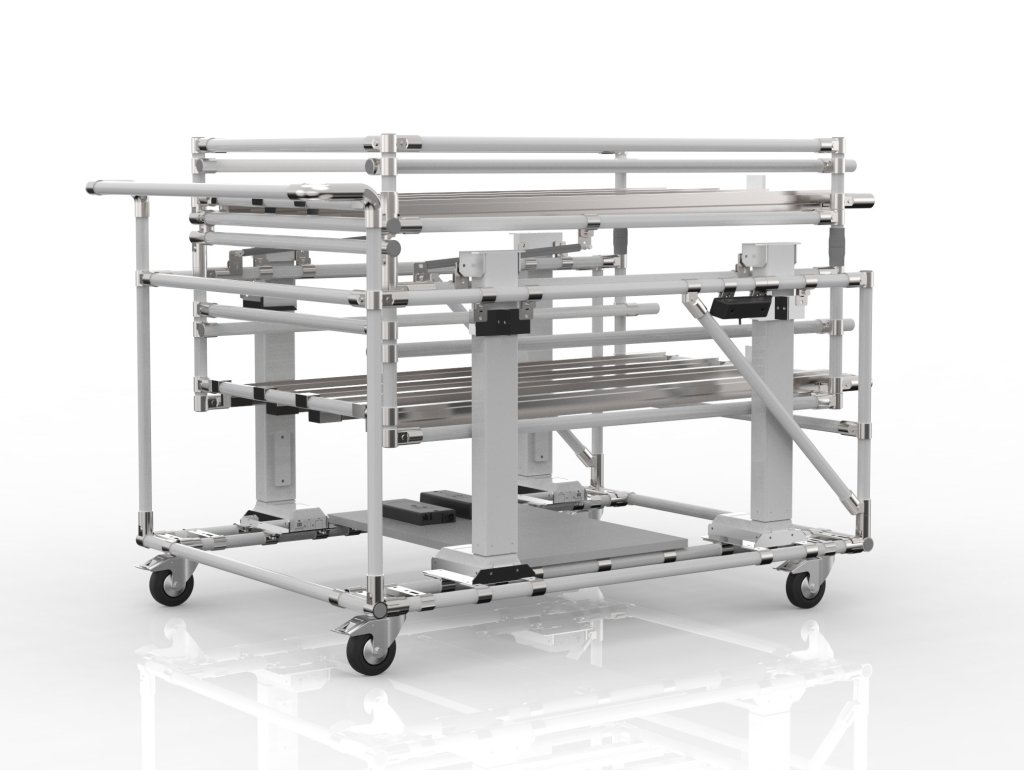

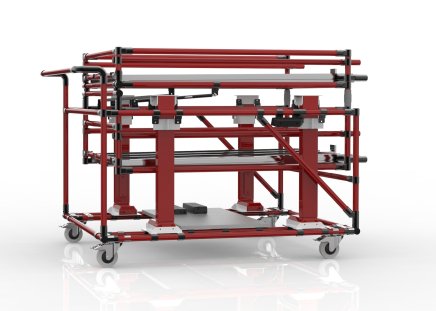

Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
| Warranty (years): | 1 |
|---|---|
| Manufacturer: |
|
