Transport trolley 23080390
Code: 23080390
The transport cart from the tubular modular system is a handy helper suitable for industrial premises, warehouses and production full description and parameters
Description and technical parameters

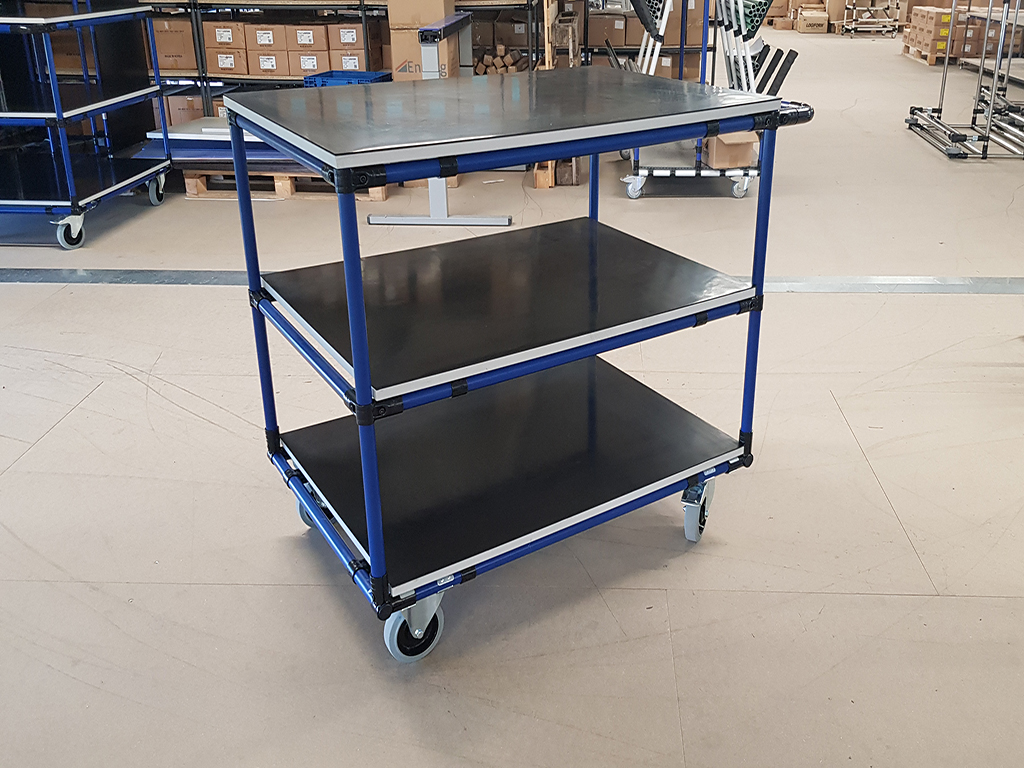

Transport trolley 23080390
The transport cart from the tubular modular system is a handy helper suitable for industrial premises, warehouses and production halls. Thanks to its robust construction and high load capacity, it is the ideal solution for transporting a wide range of goods and materials. The 18 mm thick laminate board provides a solid and stable storage surface. Trolley capacity 300 kg, floor capacity 100 kg. The trolley is equipped with wheels with a diameter of 120 mm, which allow easy and smooth movement.
- tailored implementation
- the color of the trolley can be selected according to the available tubes on the website
- DTDL plate thickness 18 mm
- total load capacity 300 kg*
- floor load capacity 100 kg*
- 2x swivel wheel with brake Ø 120 mm
- 2x swivel wheel fixed Ø 120 mm
Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.
*at uniform load
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
| Carrying capacity: | 300 kg |
|---|---|
| Height: | 1003 mm |
| Width: | 703 mm |
| Depth: | 1003 mm |
| Wheel diameter: | 125 mm |
| Warranty (years): | 2 |
