Code: SP13060

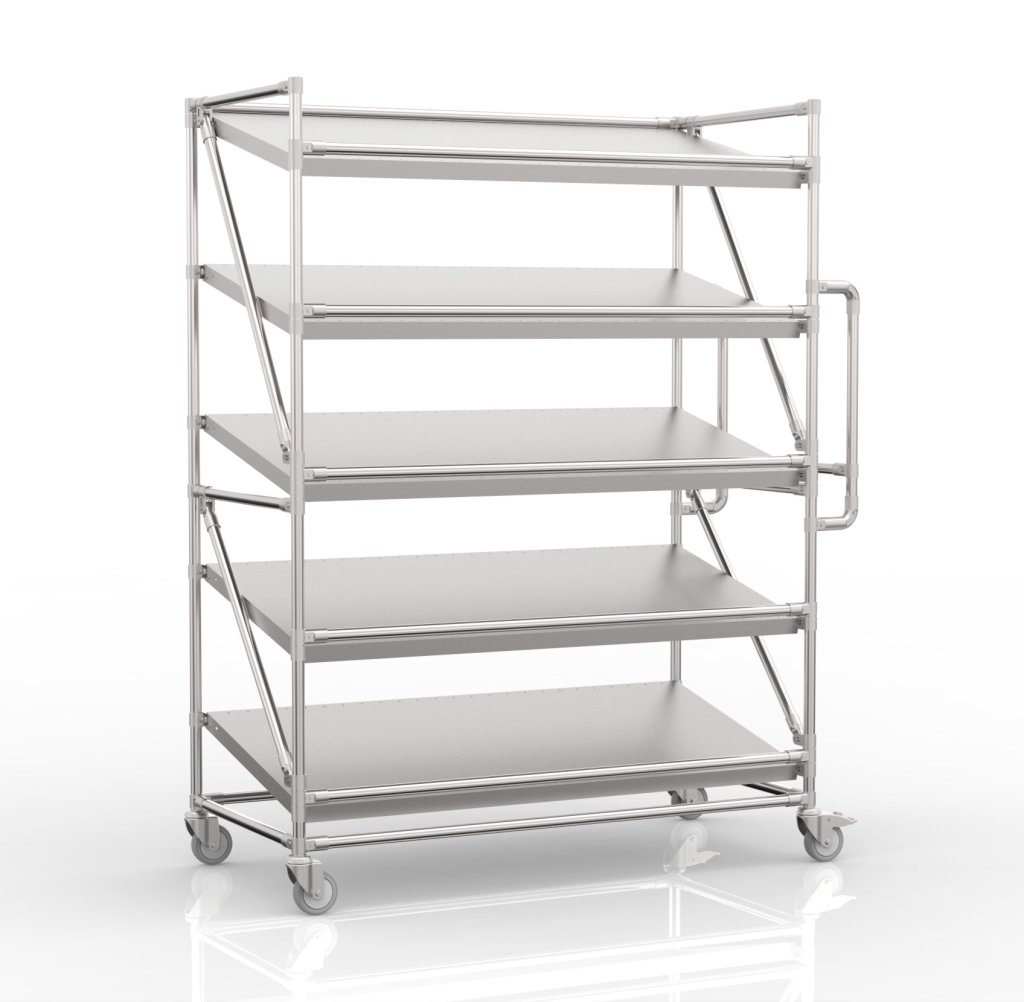

The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers, full description and parameters
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers, especially in the field of e-commerce.
The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1831 x 1366 x 667 mm.
Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in an ESD or stainless steel variant (suitable for gastronomy).
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
| Height: | 1831 mm |
|---|---|
| Width: | 1366 mm |
| Depth: | 667 mm |
| Carrying capacity: | 300 kg |
| Shelf capacity: | 60 kg |
| Shelf dimension: | 1300 x 600 mm |
| Number of shelves: | 5 |
| Warranty (years): | 2 |
| Code | SP13030 | SP13050 | Currently browsing SP13060 | SP13080 |
|---|---|---|---|---|
| Height | 1438 mm | 1807 mm | 1831 mm | 1876 mm |
| Width | 1361 mm | 1361 mm | 1366 mm | 1366 mm |
| Depth | 374 mm | 563 mm | 667 mm | 861 mm |
| Carrying capacity | 300 kg | 300 kg | 300 kg | 300 kg |
| Shelf capacity | 60 kg | 60 kg | 60 kg | 60 kg |
| Shelf dimension | 1300x300 mm | 1300 x 500 mm | 1300 x 600 mm | 1300x800 mm |
| Number of shelves | 4 | 5 | 5 | 5 |
| In stock | No | No | No | No |
| Price without VAT | 345.20 Eur | 445.08 Eur | 473.96 Eur | 508.56 Eur |
TOP
Code: R-KLT 3215
R-KLT crate with full bottom 300 x 200 x 147 mm4.52 Eur without VAT
(5.47 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 147 x w. 200 x d. 300 mm. Smooth bottom, crate capacity 20 kg, max. stacking capacity 400 kg.
TOP
Code: R-KLT 4315
R-KLT crate with full bottom 400 x 300 x 147 mm9.66 Eur without VAT
(11.69 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 147 x w. 300 x d. 400 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: R-KLT 4329
R-KLT crate with full bottom 400 x 300 x 280 mm14.53 Eur without VAT
(17.58 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 280 x w. 300 x d. 400 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
TOP
Code: R-KLT 6415
R-KLT crate with full bottom 600 x 400 x 147 mm16.32 Eur without VAT
(19.75 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 147 x w. 400 x d. 600 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: R-KLT 6429
R-KLT crate with full bottom 600 x 400 x 280 mm24.45 Eur without VAT
(29.58 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 280 x w. 400 x d. 600 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: 965670
Euro crate 9656704.74 Eur without VAT
(5.74 Eur with VAT)
The Euro crate is hygienic, easily stackable and can be used for transport and storage. Resistant to cold and contact heat, against acids and alkalis. Overall dimensions (H x W x D) in mm 170 x 200 x 300. Volume 7.6 l. Full handle.
Code: 965765
Euro crate with deposit window 96576522.80 Eur without VAT
(27.59 Eur with VAT)
The Euro crate is hygienic, easily stackable and can be used for transport and storage. Resistant to cold and contact heat, against acids and alkalis. Overall dimensions (H x W x D) in mm 420 x 600 x 400. Volume 88 l. Suitable for clear storage of small parts thanks to the storage window.
Code: 965620
Euro crate 965620, 9656217.82 Eur without VAT
(9.46 Eur with VAT)
The Euro crate is hygienic, easily stackable and can be used for transport and storage. Resistant to cold and contact heat, against acids and alkalis. Overall dimensions (H x W x D) in mm 220 x 400 x 300. Volume 20 l. Choice of full or open handle.
Code: RL-KLT 8210
RL-KLT crate with drain holes 800 x 600 x 219 mm35.85 Eur without VAT
(43.38 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions H 219 x W 600 x D 800 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
TOP
Code: RL-KLT 6280
RL-KLT crate with drain holes 600 x 400 x 280 mm22.31 Eur without VAT
(27.00 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 280 x w. 400 x d. 600 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: RL-KLT 6147
RL-KLT crate with drain holes 600 x 400 x 147 mm14.31 Eur without VAT
(17.32 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 147 x w. 400 x d. 600 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
TOP
Code: RL-KLT 4280
RL-KLT crate with drain holes 400 x 300 x 280 mm13.68 Eur without VAT
(16.55 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 280 x w. 300 x d. 400 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: RL-KLT 4147
RL-KLT crate with drain holes 400 x 300 x 147 mm8.54 Eur without VAT
(10.33 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 147 x w. 300 x d. 400 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: ESD_RL-KLT 6280
ESD RL-KLT crate with drain holes 600 x 400 x 280 mm22.31 Eur without VAT
(27.00 Eur with VAT)
ESD RL-KLT crate made of high-quality electrically conductive material that protects sensitive electronic components from electrostatic charge. spec. internal resistance* 10³ < 10¹⁰ Ohm/cm. Color black RAL 9017. Dimensions h. 280 x w. 400 x d. 600 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg. Please note that due to the flow orientation, which depends on the processing method, the finished parts may have different electrical properties. Resale of stock.
Code: SP13080
Shelving trolley for crates with slanted shelves 1300 mm wide, SP13080508.56 Eur without VAT
(615.36 Eur with VAT)
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers, especially in the field of e-commerce. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1876 x 1366 x 861 mm.
Code: SP10080
Shelving trolley for crates with inclined shelves 1000 x 800 mm, SP10080497.52 Eur without VAT
(602.00 Eur with VAT)
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1873 x 1066 x 861 mm.
Code: SP10040
Crate rack trolley with 1000 mm wide inclined shelves, SP10040 (4 models)399.96 Eur without VAT
(483.95 Eur with VAT)
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1782 x 1066 x 465 mm.
Code: SP15060
Shelving trolley for crates with inclined shelves 1500 mm wide, SP15060511.48 Eur without VAT
(618.89 Eur with VAT)
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers, especially in the field of e-commerce. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1831 x 1566 x 667 mm.
Code: SP17050
Shelving trolley for crates with slanted shelves 1700 mm wide, SP17050530.76 Eur without VAT
(642.22 Eur with VAT)
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers, especially in the field of e-commerce. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1804 x 1766 x 569 mm.
Code: SPS15040
Crate rack trolley with 5 straight shelves, SPS15040420.92 Eur without VAT
(509.31 Eur with VAT)
The crate trolley with five straight shelves is a practical helper for handling in manufacturing companies and logistics centers, especially in the field of e-commerce. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1765 x 1566 x 482 mm.
Code: SPS10040
Crate rack trolley with five straight shelves, SPS10040 (2 models)359.96 Eur without VAT
(435.55 Eur with VAT)
The rack trolley for crates with five straight shelves is a practical aid for handling in manufacturing companies and logistics centers. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1765 x 1066 x 482 mm.
Code: 23040552
Falling rack made of aluminum profiles, 230405521 084.20 Eur without VAT
(1 311.88 Eur with VAT)
A drop rack made of an aluminum profile with dimensions of 40 x 40 mm. Construction dimensions 2200 x 1860 x 510 mm. Total load capacity 150 kg (with uniform load). Custom application, all dimensions can be adjusted according to customer needs.
