Shelf trolley 24032031
Code: 24032031
The shelf trolley from the tubular modular system represents a modern and economical alternative to the traditional shelf trolley full description and parameters
Description and technical parameters
Shelf trolley 24032031

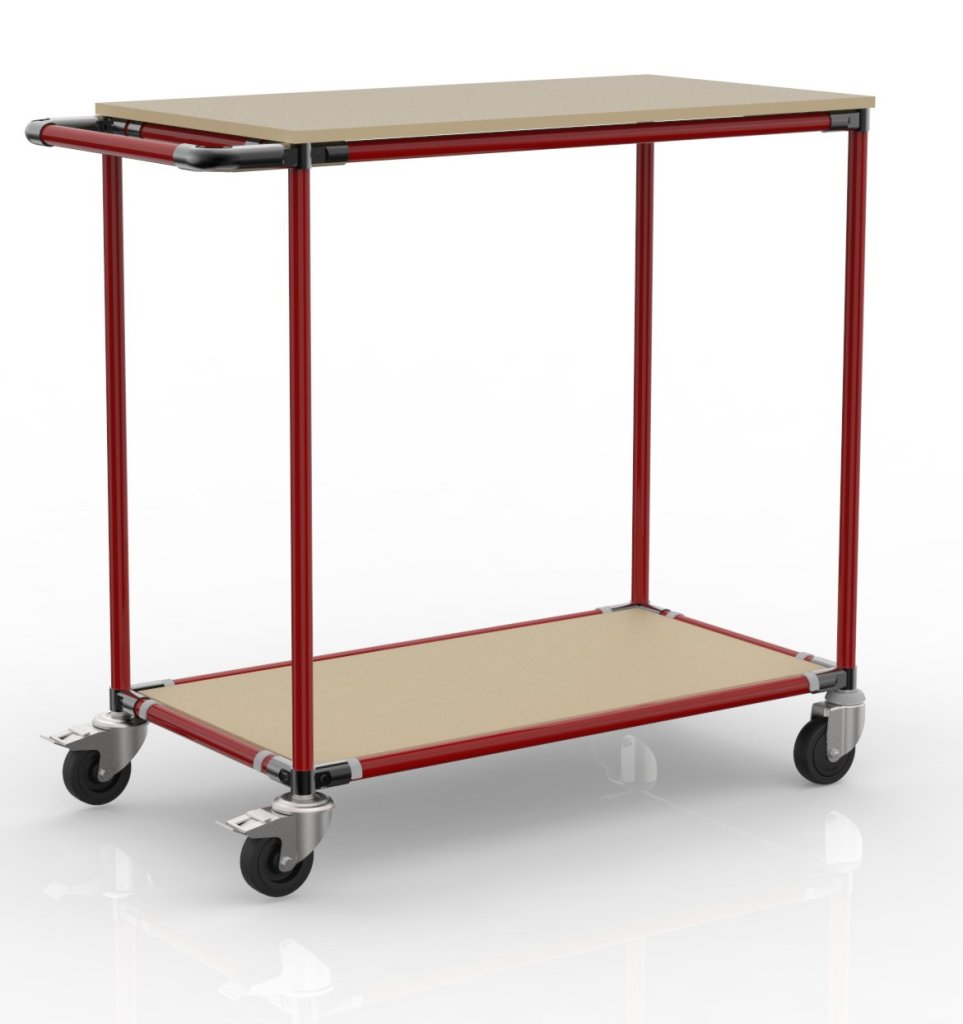

The shelf trolley from the tubular modular system represents a modern and economical alternative to the traditional shelf trolley with a steel structure. The loading surface is made of high-quality DTDS Kronospan boards, which provide reliable support and are resistant to normal wear and tear. The shelf trolley is equipped with 4 wheels for easy handling - 2 swivel wheels with brakes and 2 swivel wheels without brakes. Load capacity per floor 100 kg, total load capacity 200 kg. Trolley dimensions 1010 x 525 x 975 mm.
- shelf cart with 2 shelves
- load area DTDS Kronospan
- 2x swivel wheel with brake, 2x without brake
- wheel diameter 100 mm
- load capacity per floor 100 kg
- load capacity 200 kg
- dimensions of the upper shelf 907 x 525 x 6 mm
- dimensions of the lower shelf 907 x 457 x 6 mm
- cart dimensions 1010 x 525 x 975 mm
Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
| Height: | 1010 mm |
|---|---|
| Width: | 975 mm |
| Depth: | 525 mm |
| Carrying capacity: | 200 kg |
| Shelf capacity: | 100 kg |
| Number of shelves: | 2 |
| Warranty (years): | 2 |
| Manufacturer: |
|
