Code: 22110953

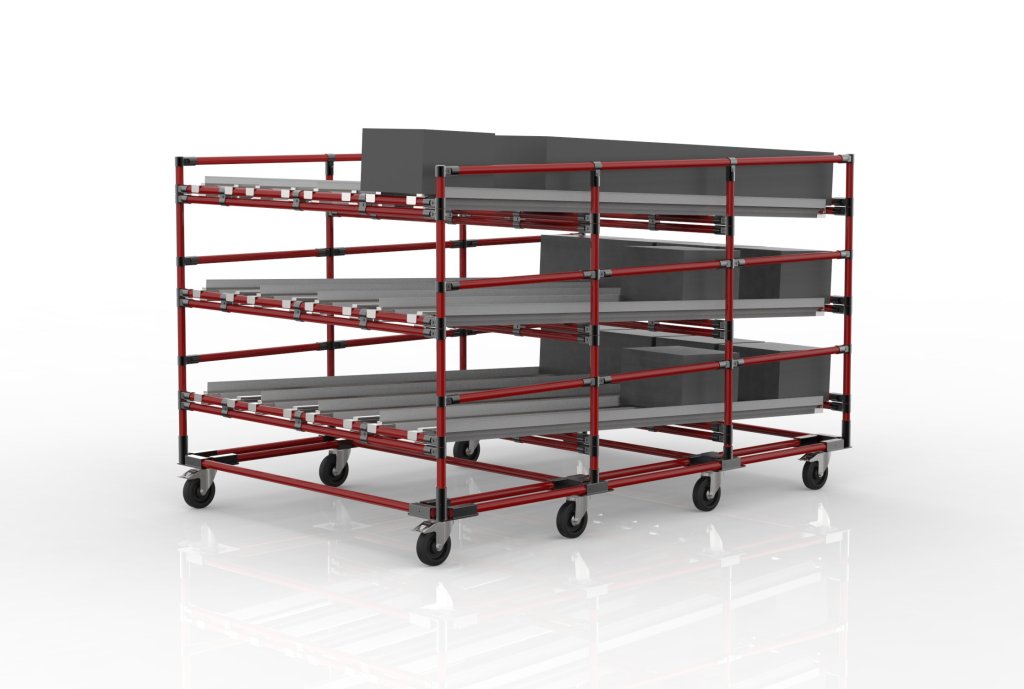

FIFO gravity rack with wheels from a tubular modular system. It includes a FIFO (First in, First out) system, which uses a classic full description and parameters
FIFO gravity rack with wheels from a tubular modular system. It includes a FIFO (First in, First out) system, which uses a classic drop rack. With the help of this system, e.g. boxes with products are inserted from one side, which, after being placed, travel to the end of the roller track so that they are unloaded from the other side of the shelving system.
Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
| Height: | 1370 mm |
|---|---|
| Width: | 1450 mm |
| Depth: | 2073 mm |
| Carrying capacity: | 900 kg |
| Warranty (years): | 2 |
| Manufacturer: |
|
Code: 965670
Euro crate 9656704.74 Eur without VAT
(5.74 Eur with VAT)
The Euro crate is hygienic, easily stackable and can be used for transport and storage. Resistant to cold and contact heat, against acids and alkalis. Overall dimensions (H x W x D) in mm 170 x 200 x 300. Volume 7.6 l. Full handle.
Code: 965765
Euro crate with deposit window 96576522.80 Eur without VAT
(27.59 Eur with VAT)
The Euro crate is hygienic, easily stackable and can be used for transport and storage. Resistant to cold and contact heat, against acids and alkalis. Overall dimensions (H x W x D) in mm 420 x 600 x 400. Volume 88 l. Suitable for clear storage of small parts thanks to the storage window.
TOP
Code: R-KLT 3215
R-KLT crate with full bottom 300 x 200 x 147 mm4.52 Eur without VAT
(5.47 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 147 x w. 200 x d. 300 mm. Smooth bottom, crate capacity 20 kg, max. stacking capacity 400 kg.
TOP
Code: R-KLT 4315
R-KLT crate with full bottom 400 x 300 x 147 mm9.66 Eur without VAT
(11.69 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 147 x w. 300 x d. 400 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: R-KLT 4329
R-KLT crate with full bottom 400 x 300 x 280 mm14.53 Eur without VAT
(17.58 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 280 x w. 300 x d. 400 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
TOP
Code: R-KLT 6415
R-KLT crate with full bottom 600 x 400 x 147 mm16.32 Eur without VAT
(19.75 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 147 x w. 400 x d. 600 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: R-KLT 6429
R-KLT crate with full bottom 600 x 400 x 280 mm24.45 Eur without VAT
(29.58 Eur with VAT)
R-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5003 blue. Dimensions h. 280 x w. 400 x d. 600 mm. Extremely stable composite bottom, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: 965620
Euro crate 965620, 9656217.82 Eur without VAT
(9.46 Eur with VAT)
The Euro crate is hygienic, easily stackable and can be used for transport and storage. Resistant to cold and contact heat, against acids and alkalis. Overall dimensions (H x W x D) in mm 220 x 400 x 300. Volume 20 l. Choice of full or open handle.
Code: RL-KLT 8210
RL-KLT crate with drain holes 800 x 600 x 219 mm35.85 Eur without VAT
(43.38 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions H 219 x W 600 x D 800 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
TOP
Code: RL-KLT 6280
RL-KLT crate with drain holes 600 x 400 x 280 mm22.31 Eur without VAT
(27.00 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 280 x w. 400 x d. 600 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: RL-KLT 6147
RL-KLT crate with drain holes 600 x 400 x 147 mm14.31 Eur without VAT
(17.32 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 147 x w. 400 x d. 600 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
TOP
Code: RL-KLT 4280
RL-KLT crate with drain holes 400 x 300 x 280 mm13.68 Eur without VAT
(16.55 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 280 x w. 300 x d. 400 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: RL-KLT 4147
RL-KLT crate with drain holes 400 x 300 x 147 mm8.54 Eur without VAT
(10.33 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 147 x w. 300 x d. 400 mm. Smooth bottom with drainage holes, crate capacity 20 kg, max. stacking capacity 600 kg.
Code: RL-KLT 3147
RL-KLT crate with a smooth bottom 300 x 200 x 147 mm4.52 Eur without VAT
(5.47 Eur with VAT)
RL-KLT crate made of high-quality polypropylene resistant to oils, fats and most acids and alkalis. Thermal stability from -20° to 100° C, color RAL 5005 blue. Dimensions h. 147 x w. 200 x d. 300 mm. Smooth bottom, crate capacity 20 kg, max. stacking capacity 400 kg.
Code: 22052602
Gravity conveyor 22052602495.80 Eur without VAT
(599.92 Eur with VAT)
Gravity conveyor from a tubular modular system for moving materials. The system uses roller tracks to move the material. Thanks to the inclined lower roller track, the empty plastic pallets are automatically returned to the beginning of the conveyor. Load capacity per floor 200 kg, total load capacity 400 kg. Dimensions 840 x 3003 x 503 mm.
Code: 22050304
Drop conveyor 22050304Price on request
The drop conveyor from the tubular modular system is intended for storing KLT crates and boxes with dimensions of 600 x 400 x 280 mm. This innovative conveyor is designed to facilitate material handling and improve work efficiency. The shelves are formed by roller tracks, thanks to which it is possible to easily and smoothly move the KLT crates along the entire length of the conveyor in the direction of the fall of the roller tracks. Total load capacity 100 kg. Dimensions 1202 x 943 x 1253 mm.
Code: 22013104
Falling shelf 22013104Price on request
Falling rack from a tubular modular system
Code: SP13080
Shelving trolley for crates with slanted shelves 1300 mm wide, SP13080508.56 Eur without VAT
(615.36 Eur with VAT)
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers, especially in the field of e-commerce. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1876 x 1366 x 861 mm.
Code: SP10080
Shelving trolley for crates with inclined shelves 1000 x 800 mm, SP10080497.52 Eur without VAT
(602.00 Eur with VAT)
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1873 x 1066 x 861 mm.
Code: SP15060
Shelving trolley for crates with inclined shelves 1500 mm wide, SP15060511.48 Eur without VAT
(618.89 Eur with VAT)
The crate trolley with five inclined shelves is a practical helper for handling in manufacturing companies and logistics centers, especially in the field of e-commerce. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1831 x 1566 x 667 mm.
Code: SP13030
Shelving trolley for crates with 1300 mm wide inclined shelves, SP130304 (4 models)345.20 Eur without VAT
(417.69 Eur with VAT)
The crate trolley with four inclined shelves is a practical helper for handling in manufacturing companies and logistics centers, especially in the field of e-commerce. The trolley includes two swivel castors with a brake and two swivel castors without a brake with a diameter of 100 mm. The advantage of these wheels is low rolling resistance and, thanks to this, comfortable handling. The configuration of the wheels can be changed according to the customer's requirements. The trolley is also equipped with an ergonomic handle for easier and more comfortable handling. Total load capacity 300 kg, load capacity on the shelf 60 kg. Dimensions 1438 x 1361 x 374 mm.
Code: 23040552
Falling shelf made of aluminum profiles, 230405521 084.20 Eur without VAT
(1 311.88 Eur with VAT)
A drop shelf made of an aluminum profile with dimensions of 40 x 40 mm. Construction dimensions 2200 x 1860 x 510 mm. Total load capacity 150 kg (with uniform load). Custom application, all dimensions can be adjusted according to customer needs.
