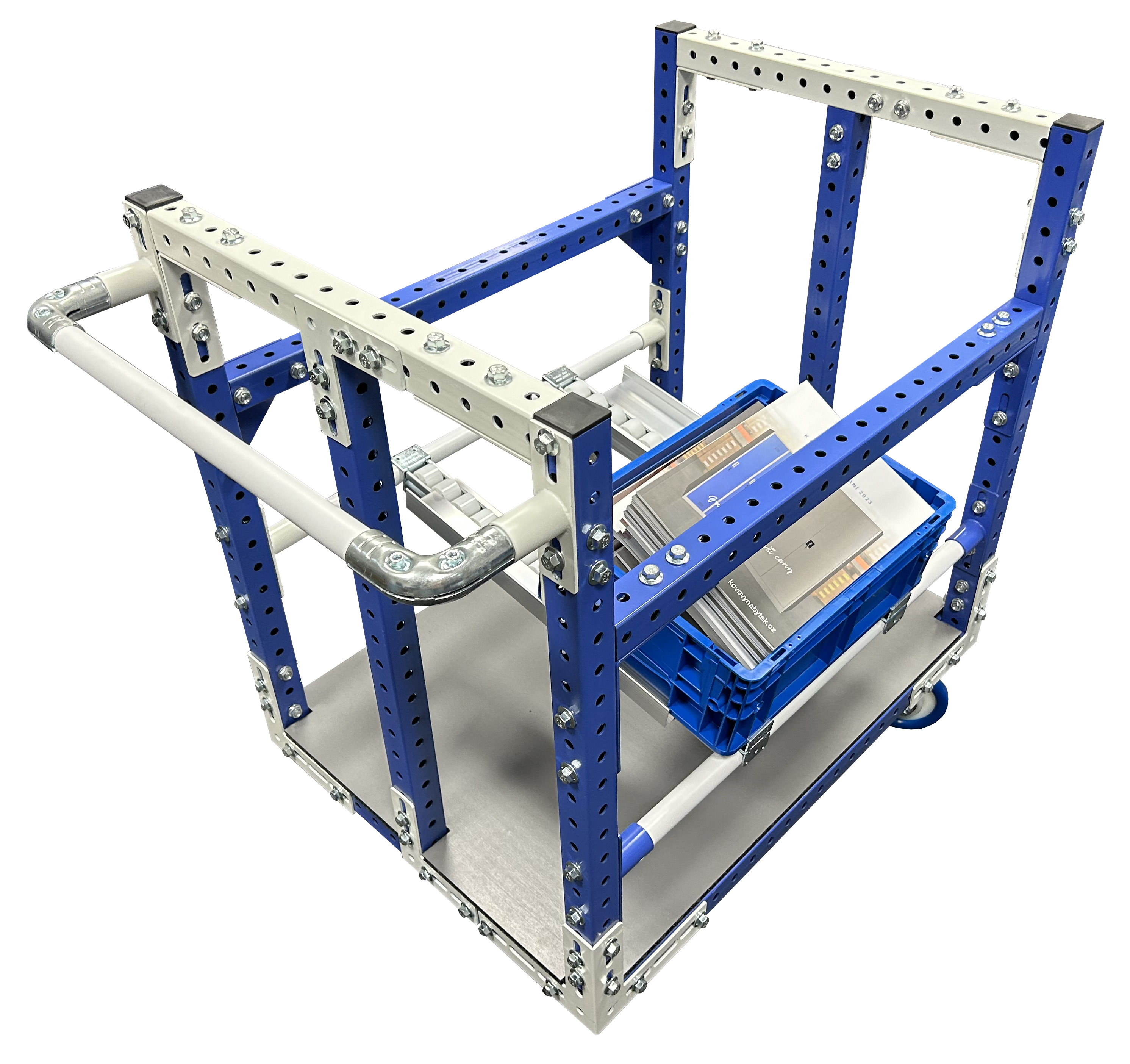

Flexible and, above all, reliable structural system with high load-bearing capacity suitable for a wide range of industrial applications. Its modular nature makes it easy to adapt the design to your company's needs and guarantees a reliable product. Thanks to its high resistance and load-bearing capacity, the system provides a long service life.





Key features of the kit system

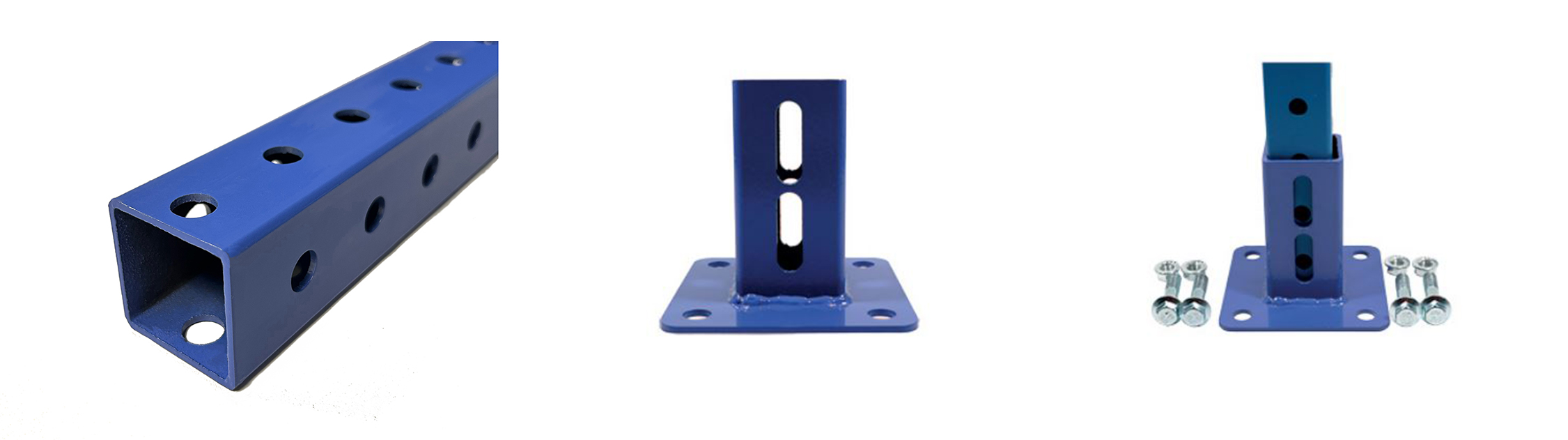

The basis of the entire system are perforated square tubes with a dimension of 40 x 40 mm and a material thickness of 3 mm. Regular perforation is not only an aesthetic element, but also an effective way to save time during assembly. Each square tube comes with a precise arrangement of holes, which simplifies and speeds up the assembly process without the employee having to deal with additional material modification. The system uses M10 threaded bolts for the accessories and M8 for the wheels. In addition, the entire system can be assembled with just 2 wrenches without the need for welding.





Construction system without the need for welding

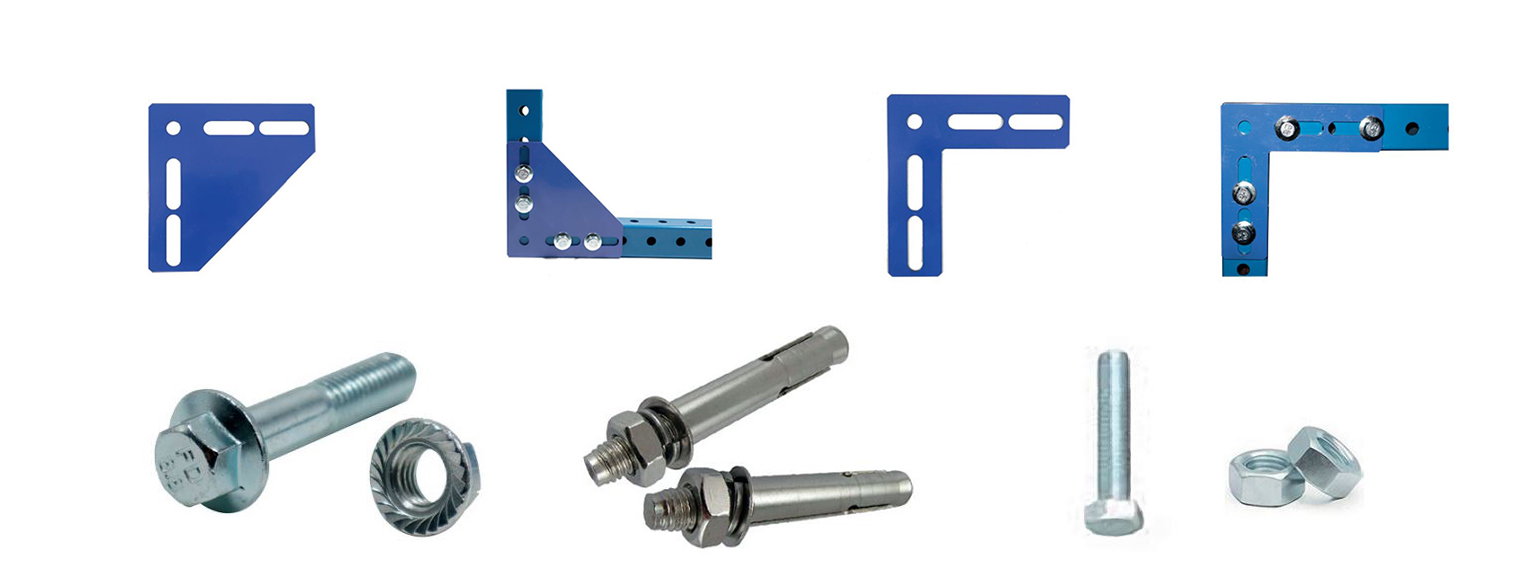

Despite its high load capacity, the system has one great advantage - it does not need to be welded. Instead of traditional welding, the system uses special couplings, screws and nuts to create strong and stable connections. This enables a wider spectrum of use in an industrial environment, where robust constructions are primarily needed. It not only saves time and costs associated with welding, but also provides flexibility and the ability to quickly adapt to changing customer needs.





Easy maintenance and high security



This system offers simple maintenance and minimizes downtime in the event of structural damage. Safety features are integrated into the design of the structure, which minimizes the risk of accidents and injuries when handling heavy objects. In this way, not only transported materials can be protected, but also the health of employees.



We have summarized the advantages of the Cube system:
