Chassis for two EURO pallets with drawbar 24021502
Code: 24021502

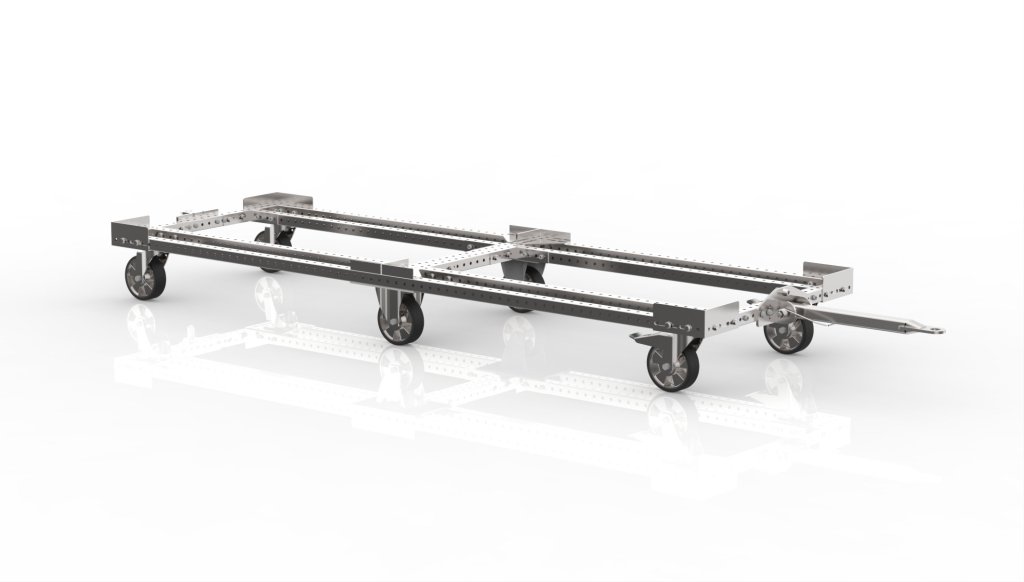

Manipulating chassis for two EURO pallets with a drawbar, which enables the connection of several trucks. Chassis dimensions L full description and parameters
Description and technical parameters
Chassis for two EURO pallets with drawbar 24021502

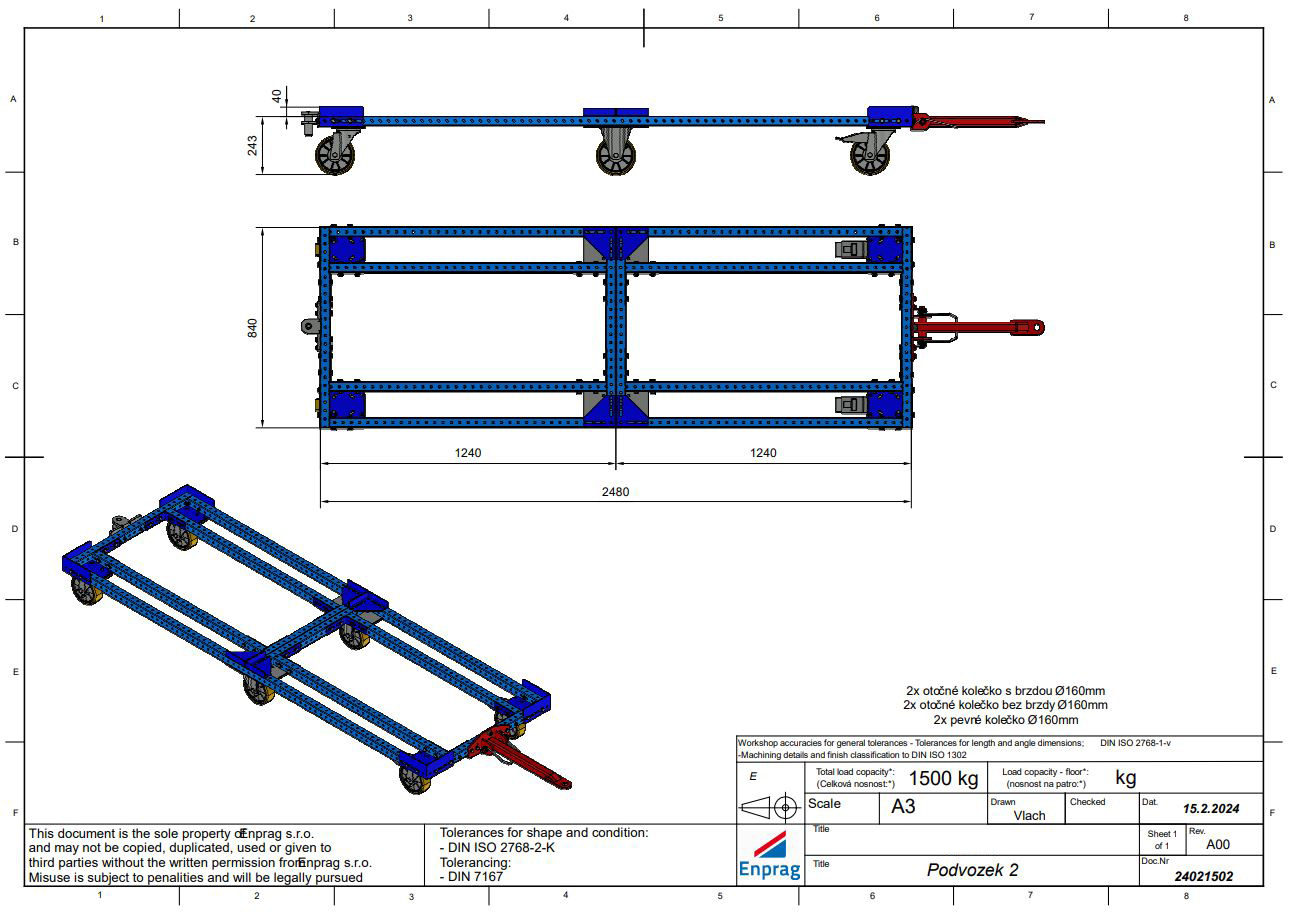

Manipulating chassis for two EURO pallets with a drawbar, which enables the connection of several trucks. Chassis dimensions L.2480 mm x W.840 mm H.300 mm. Option of ESD variant. Load capacity 1500 kg.
-
dimensions L.2480 mm x W.840 mm H.300 mm
-
2x swivel wheel with brake, 2x swivel wheel without brake, 2x fixed wheel
-
wheel diameter 160 mm
-
ESD variant option
-
load capacity 1500 kg
Custom application, all dimensions can be adjusted according to customer needs.
| Height: | 300 mm |
|---|---|
| Width: | 840 mm |
| Length: | 2480 mm |
| Carrying capacity: | 1500 kg |
| Warranty (years): | 2 |
| Manufacturer: |
|
